How to Install a Doorbell Button on Siding

Save

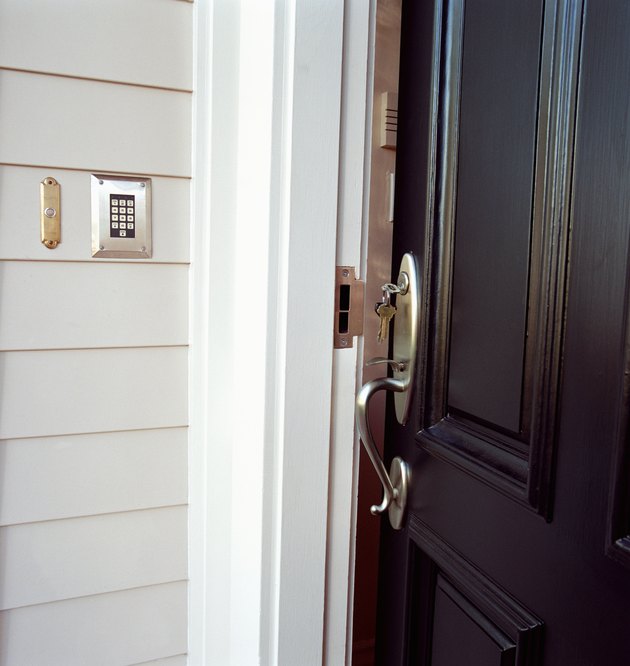

Installing a doorbell on siding can be tricky without the right equipment.
Installing a doorbell on siding can be tricky without the right equipment. (Image: Siri Stafford/Photodisc/Getty Images)

Depending on the width of your door's trim and the spacing between your siding's ridges, it may be impossible to mount a doorbell flush on either surface. Vinyl siding mounting blocks were created to solve this problem, and eliminate gaps between the doorbell and your house. Most mounting blocks can be painted and come in a variety of sizes and styles. Select a mounting block that will work well with your siding as well as with your new doorbell.

Things You'll Need

  • Circuit tester
  • Doorbell mounting block
  • 1 1/2-inch wood screws
  • Drill
  • Phillips driving bit
  • Phillips screwdriver
  • Silicone caulk
  • Caulk gun

Check that no power is being supplied to the doorbell wiring by holding a circuit tester against them. Feed the doorbell wiring protruding from the side of the house through the hole in the center of a doorbell mounting block. Push the mounting block against the siding and adjust it to close any gaps.

Drive 1 1/2-inch wood screws through each of the mounting block's screw holes. Loosen the new doorbell's screw terminals. Bend the two wires coming from the house into hooks. Hook one wire around each terminal. It does not matter which terminal each wire gets connected to. Tighten the doorbell's screw terminals.

Press the doorbell against the mounting block. Line up the doorbell's screw holes with the mounting blocks screw holes. Secure the doorbell to the mounting block with the provided screws.

Place a tube of silicone caulk into a caulk gun. Run a bead of the caulk around the seam where the mounting block meets the siding. Smooth the caulk bead with a finger.

Tips & Warnings

  • Some doorbell mounting blocks come with an attached electrical box. If yours does, back out the screws holding the doorbell's current electrical box in the wall and remove it.
