How to Coat a Silk Screen With Photo Emulsion

eHow may earn compensation through affiliate links in this story. Learn more about our affiliate and product review process here.

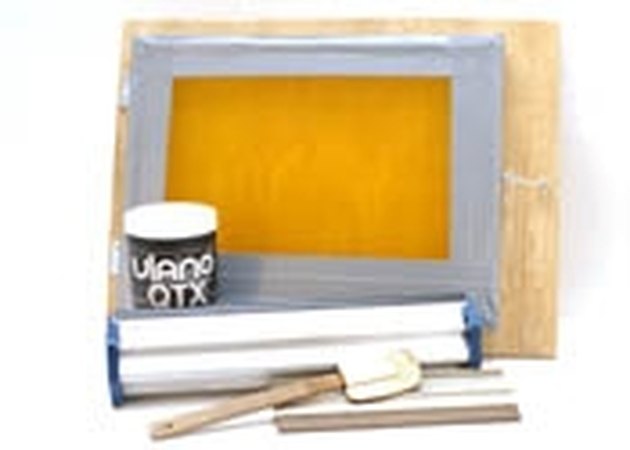

Things You'll Need

  • Photo Emulsion

  • Scoop Coaters

  • Silk Screens

  • Electric Fans

  • Sponges

  • Plastic Containers

  • Plastic Or Glass Measuring Cups

  • Plastic Spatulas

Coat a Silk Screen With Photo Emulsion

How to Coat a Silk Screen With Photo Emulsion. Using photo emulsion is the best way to transfer art to a silk screen for printing. Coating the silk screen is the first step in this process.

Advertisement

Step 1

Make sure you have a dry, degreased silk screen ready for use.

Video of the Day

Step 2

Mix up your photo emulsion according to the directions on the package. The emulsion has two parts, the first being a viscous blue or pink liquid, the second a clear "activator." The emulsion is light-sensitive when these two parts are combined, attaining its greatest sensitivity when fully dry. However, in its liquid form, the emulsion is slow-acting enough to be used under regular lighting conditions as long as you work quickly and avoid the sun.

Advertisement

Step 3

Pour about 4 oz. of the activated mixture into a scoop coater made especially for this task.

Step 4

Place the silk screen in a vertical position tipped slightly back with the flat side of the screen facing you. Make sure that it is wedged in such a way so as not to move when you apply pressure to it.

Advertisement

Step 5

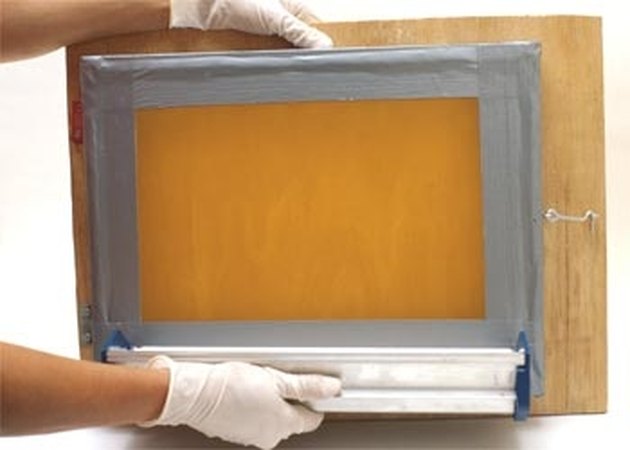

Hold the scoop coater horizontally in both hands and press it to the bottom left corner of the screen so that its edges overlap the tape on the screen - about 1/4 inch on the left side and equally on the bottom edge of the tape.

Step 6

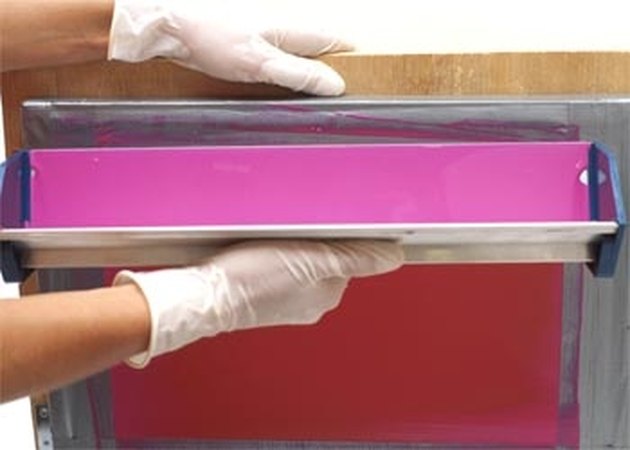

Tip the scoop coater so that the liquid inside it makes even contact across the entire lip of the coater and the tape of the screen.

Advertisement

Step 7

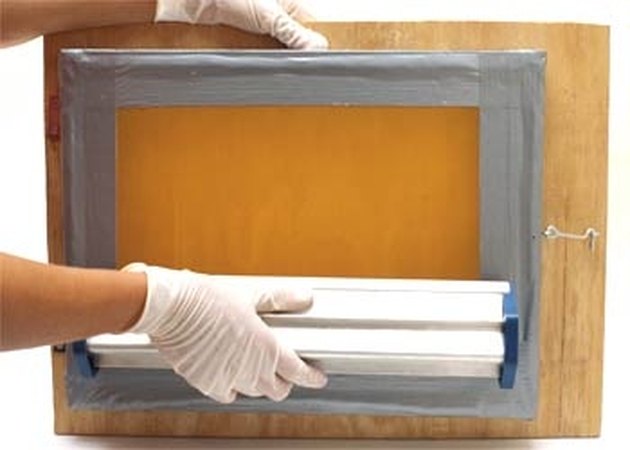

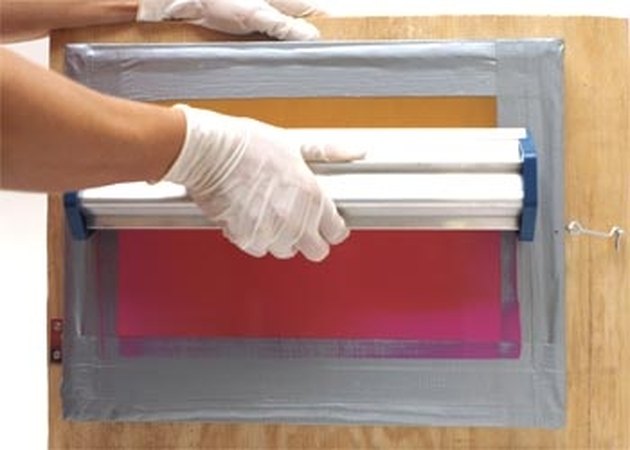

Squeegee the scoop coater over the surface of the screen by pulling upward until you reach the tape at the top of the screen; use firm pressure on the silk screen and keep the scoop coater tipped. This should deposit an even, thin film of emulsion across the surface of the screen.

Step 8

Tip the scoop coater back, breaking contact with the screen while being careful not to drip any emulsion. If there is any excess emulsion at the top of the screen that is threatening to move down onto its surface, wipe it away quickly with a damp sponge before proceeding to the bottom right corner to repeat the process on that side of the screen.

Advertisement

Step 9

Repeat the process you have used for the two sides so as to coat the narrow, uncoated band that will be left up the center of a large-size screen - but try to use the barest minimum of emulsion necessary. Instead, rely on the excess deposits already on the screen to cover the center band.

Advertisement

Advertisement

Step 10

Wipe up any excess emulsion immediately after finishing the coating and place the screen face up in a dark closet or room to dry. This will take about 3 hours under normal conditions, but can be speeded up considerably by using a fan to blow air over the surface of the screen.

Step 11

Use a plastic spatula to push the excess emulsion out of the scoop coater and into a storage container.

Advertisement

Tip

Have all materials you'll need within reach before beginning the process. Have a pre-prepared place set up where the newly coated screen can dry. Coating takes a little practice. Once you commit to the coating action, follow through until you reach the top. Don't apply the emulsion thickly and don't re-coat any areas. If you have missed an area, try to use any excess emulsion already on the screen to coat that area.

Warning

Dry photo emulsion is difficult to remove. Don't let it dry in your scoop coater or it will ruin it. The emulsion must be applied in one thin, even coat. Otherwise, it will not expose properly and the screen will need to be washed out and re-coated. Use photo emulsion in a well-ventilated area and avoid contact with skin.
