How to Replace an Electrical Outlet With 3 Wires

eHow may earn compensation through affiliate links in this story. Learn more about our affiliate and product review process here.

Things You'll Need

  • Screwdriver

  • Multimeter

  • Electrical outlet

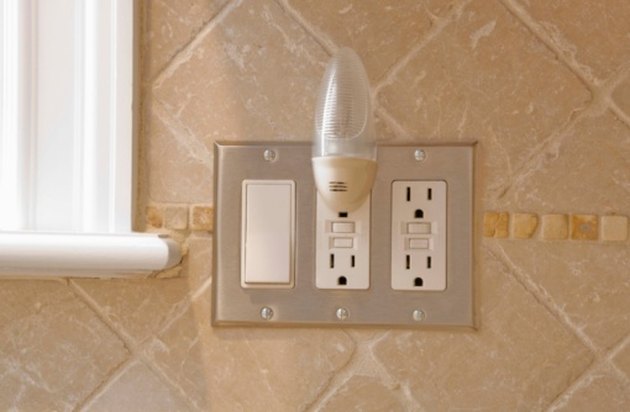

Electrical outlets in the US are typically rated at 110 volts AC.

Electrical outlets, or receptacles, allow you to connect an appliance to electrical wires inside your home. Electrical outlets in the United States come in 110-volt with three wires: a black power wire, a white neutral wire and a green or bare grounding wire. Outlets come in many styles and colors, but all outlets operate with the same basic principles. When replacing a three wire electrical outlet, you disconnect the existing outlet, then follow a simple color-coded wiring scheme. Replacing an electrical outlet is not a difficult task but requires safety precautions to be done safely and correctly.

Advertisement

Step 1

Locate the main circuit breaker inside the electrical panel, and flip its switch to its "Off" position. The main circuit breaker has the highest amps amongst all breakers inside the panel and typically occupies the topmost position.

Video of the Day

Step 2

Remove the cover plate screws with a screwdriver, then pull the cover plate off the wall. After removing the cover plate, unscrew the screws that hold the electrical outlet to the wall. Outlets are typically mounted onto a wall, using screws placed on top, and at the bottom of the outlet. A cover plate is mounted over the outlet to hide and protect the wires inside the outlet. Pull the outlet carefully out of the outlet box to expose the terminal screws behind the outlet.

Advertisement

Step 3

Set the dial of a multimeter to 120-volts AC range and test the outlet to make sure that there is no more power. Hold the probes of the multimeter in each hand, then press the tip of the black probe against the tip of the black wire on the outlet. Press the tip of the red probe against the tip of the white wire. The multimeter should not display any reading. Loosen the terminal screws at the back of the existing outlet and remove the attached wires.

Advertisement

Step 4

Hold a new electrical outlet similar to the one you removed earlier, and loosen each terminal screw behind the outlet. Hook the black wire clockwise around the brass terminal screw. Hook the white wire clockwise around the silver terminal screw, and hook the green or bare wire around the green terminal screw.

Advertisement

Step 5

Tuck the wires into the outlet box, and mount the outlet onto the outlet box, using screws supplied with the outlet. Replace the outlet's cover plate. Turn the main circuit breaker switch inside the electrical panel to its "On" position. Plug a 110-volt appliance into the outlet to test the circuit.

Warning

Replacing an electrical outlet is a dangerous task. Call an electrician if you do not possess qualified training and experience. The voltage, and ampere rating of the new outlet must be the same as the rating of the electrical wires, and circuit breaker.
