How to Make a Balloon Pump Out of PVC Pipe

eHow may earn compensation through affiliate links in this story. Learn more about our affiliate and product review process here.

Things You'll Need

  • 1, 4 inch PVC cap

  • 1, 4 to 3-inch PVC coupler

  • 1, 3-foot length of 4 inch PVC pipe

  • 1, 3-inch rubber cap

  • 1, 4-foot length of 3 inch PVC pipe

  • 1, 3-inch PVC base

  • PVC glue

  • Nozzles (size and shapes depend on intended usage)

  • Teflon tape

  • Tap

  • Drill

  • Drill bits (size depends on the nozzles chosen)

  • Dremmel tool or sandpaper

  • Vaseline or similar lubricant

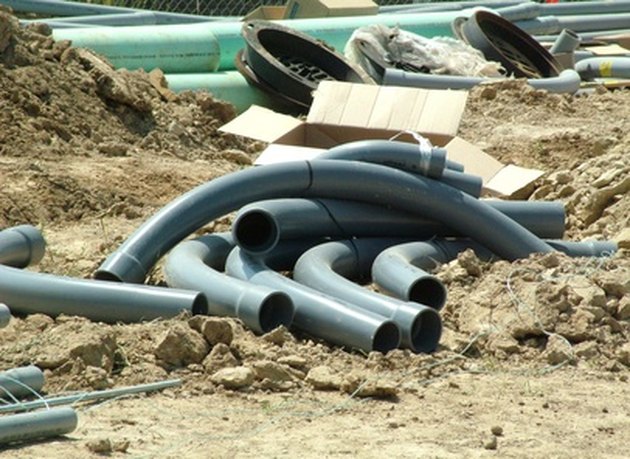

With the right set of plans, PVC can be used to build almost anything.

Commercial balloon pumps can be very expensive. Some require batteries and others are difficult to operate. The basic premise behind a floor pump is to create a simple "plunger" effect that forces air through a nozzle to inflate the balloon. Plans range from very simple to more complex, but they all work the same. The balloon pump will take around one day to complete including the drying times.

Advertisement

Step 1

Apply the PVC glue to one end of the length of 3-inch PVC pipe and to the inside of the 3-inch PVC base.

Video of the Day

Step 2

Press the two pieces together firmly and set aside to dry.

Step 3

Drill a hole in the center of the 4-inch PVC cap. The size depends on the nozzles chosen.

Step 4

Add threads to the hole using the tap. The size depends on the nozzles chosen.

Step 5

Wrap some Teflon tape around the base of one of the nozzles and screw it into the tapped hole. The Teflon tape helps prevent air from escaping from around the base of the nozzle.

Advertisement

Step 6

Sand down the interior of the 4 to 3-inch coupler until the 3-inch PVC pipe can pass all the way through with minimal friction. This is done using the Dremmel tool or sandpaper to remove the interior ridge of the coupler.

Step 7

Fit the 3-inch rubber cap onto the 3-inch PVC pipe.

Advertisement

Step 8

Verify that the coupler continues to slide freely over the rubber cap and the PVC pipe. Continue to sand the coupler until both the cap and the pipe pass through with minimal friction.

Step 9

Glue the 4-inch PVC pipe to the 4-inch PVC cap with the attach nozzle and set them aside to dry.

Advertisement

Step 10

Wait for the pieces to dry for at least 12 hours.

Step 11

Attach the 4 to 3-inch coupler to the 4-inch PVC pipe and nozzle assembly. Do not use glue.

Step 12

Apply Vaseline or similar lubricant to the inside of the coupler and the outside of the 3-inch PVC pipe.

Advertisement

Step 13

Slide the 4-inch PVC assembly over the 3-inch PVC assembly.

Step 14

Hold a balloon over the nozzle, lift up on the 4-inch assembly while standing on the base, then push down to inflate the balloon.
