How to Drill an Acrylic Sheet

eHow may earn compensation through affiliate links in this story. Learn more about our affiliate and product review process here.

Things You'll Need

  • Acrylic sheet

  • Safety glasses

  • 3/8-inch plywood

  • 1x4-inch piece of wood longer than the acrylic sheet

  • Two pair of self-locking pliers

  • Drill motor

  • Drill bit designed for plastic

  • Spray bottle filled with water

  • Countersink drill bit

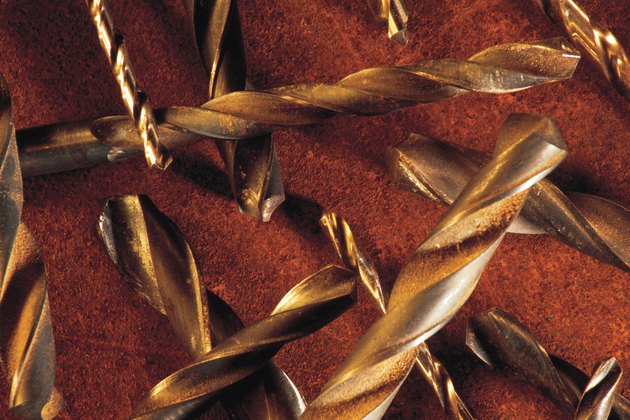

Image Credit: Comstock Images/Comstock/Getty Images

Drilling holes in acrylic requires the use of a drill bit specially designed for use with plastics. Standard metal drill bits will work, but without extensive modification, the metal drill bit will crack and chip the brittle acrylic sheet. There are precautions that you must take to ensure that the hole does not get hot and melt the acrylic sheet or that the exit side of the acrylic sheet does not crack. Taking extra precautions will ensure that the you will have a perfectly drilled hole in the acrylic sheet.

Advertisement

Step 1

Lay the 3/8-inch plywood on a firm flat surface that allows you to work easily and place the acrylic sheet on top of the plywood.

Video of the Day

Step 2

Place the 1x4-inch piece of wood across the acrylic sheet and secure the plank to the top of the acrylic sheet by clamping one pair of self-locking pliers to each side of the acrylic sheet.

Advertisement

Step 3

Put on your safety glasses and secure the drill bit into the chuck of the drill motor.

Step 4

Align the tip of the drill bit with the location that you need to drill the hole through the acrylic sheet. Depress the trigger of the drill motor to start drilling the hole into the acrylic sheet.

Advertisement

Step 5

Spray water on the drill bit with the water bottle to keep the drill bit cool and provide a smooth finish to the drilled hole.

Step 6

Drill through the acrylic sheet and into the 3/8-inch plywood. Reverse the direction of the drill motor to remove the drill bit from the acrylic sheet.

Advertisement

Step 7

Release the self-locking pliers, remove the 1x4-inch plank from the top of the acrylic sheet and exchange the drill bit for the countersink bit.

Step 8

Lightly hit both sides of the hole you drilled into the acrylic sheet with the countersink bit to remove the bur from the acrylic sheet. If the bur is not removed, the acrylic sheet can crack when pressure is applied to the sheet with a fastener.
