Techniques for Casting Clear Resin

Save

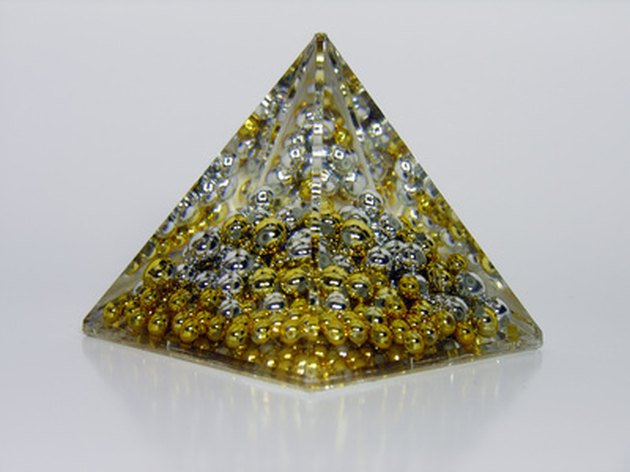

Clear plastic resin can be molded into many different items.
Clear plastic resin can be molded into many different items. (Image: pyramid paperweight image by Michael Cornelius from Fotolia.com)

Casting clear resin involves pouring liquid resin into a mold. The resin hardens and takes on the shape of the mold. There are various types of clear resin, including epoxy resins and polyester resins. Be careful when selecting a resin as some are not intended for casting. Some retain a tacky surface even when cured, and some are very hard to sand or polish. Resins give off fumes when liquid, so ventilation is important.

Casting with Inclusions

Inclusions are items added to the liquid resin which will be left trapped in the piece when it hardens. Common inclusions are photos, coins, beads, sequins, crystals, buttons, fibers and fabric scraps. Some use liquid resin casting as a way to preserve specimens such as plants or insects. You can make steampunk-style or found-object jewelry using inclusions. You may need to build up the resin in layers if you're creating a larger piece, or if you want your inclusions to appear to float at different depths in the resin. If you're tinting the resin, remember that the color of the resin will affect the apparent colors of the inclusions. Some resins get hot as they cure, and this may damage some items.

You can use clockwork parts as inclusions.
You can use clockwork parts as inclusions. (Image: beautiful old clock machine image by JoLin from Fotolia.com)

Casting in Plastic

Plastic molds have the advantage of being readily available, inexpensive and reusable. You can often find them in the same stores that supply resin for casting. You can also improvise molds from plastic items, or make your own plastic molds using vacuum molding equipment. Be careful when using improvised or home-made molds that the plastic is compatible with your resin. Liquid resin can attack some plastic, potentially ruining your project. Test a small amount of resin on the plastic you want to use first.

Casting in Jewelry Blanks

If you are using your clear resin to make jewelry, you can cast directly into jewelry blanks such as pendant backs or ring blanks. Remember that if the blank has an open back, you will have to cover it so the resin does not leak out. You pour the liquid resin carefully into the jewelry blank, along with any inclusions you wish to add. Doming resin is commonly used for this kind of project. This is a slightly viscous resin that naturally forms a bulge over the base it is poured onto. Doming resin magnifies the items underneath it. (See References 1, 2 & 5)

Colored beads and sequins can be cast in clear resin jewelry.
Colored beads and sequins can be cast in clear resin jewelry. (Image: beads 1 image by Aleksandra Konoplya from Fotolia.com)

Casting in Silicone

Resin can be cast in silicone rubber molds. You cover the original in the liquid silicone molding material. When the curing process is finished, you will be left with a soft, flexible rubber mold, into which you can pour the liquid resin. This is a very useful technique if you want to make a number of copies of something because the mold can be reused. Useful equipment for silicone molding includes a de-gasser, which removes the bubbles from the silicone. Silicone mold release helps you to remove your item from the silicone mold once the resin is cured. (See References 1 & 4)

You can make molds using liquid silicone.
You can make molds using liquid silicone. (Image: full hand print on silicon image by Andrew Brown from Fotolia.com)
