How to Fix a Throttle on a Lawnmower

eHow may earn compensation through affiliate links in this story. Learn more about our affiliate and product review process here.

Things You'll Need

  • Screwdriver

  • Measuring tape

  • Wrench

  • Pliers

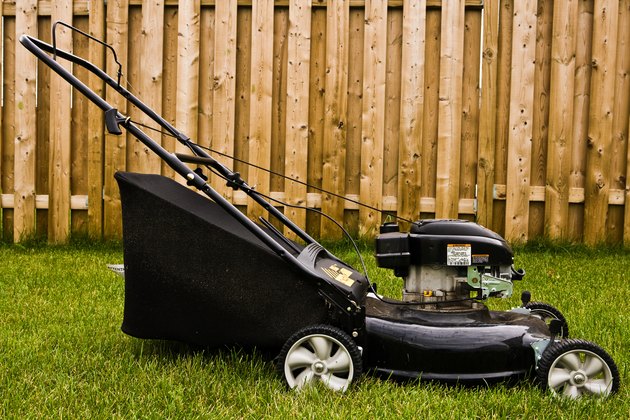

The lawnmower throttle controls the power from the engine.

The throttle is a component of the lawnmower that controls the speed of the engine. The throttle is used when starting the engine and during mowing to regulate fuel consumption and the speed which the blades turn. When the engine cuts out due to lack of power, or the unit fails to respond to adjustments in the throttle handle, the throttle may need servicing or replacement. On most mowers a throttle handle pulls on a throttle cable to control the engine speed.

Advertisement

Step 1

Push forward and backward on the throttle handle to inspect whether the handle is moving the throttle cable running down to the engine.

Video of the Day

Step 2

Press down on the tabs of the air filter cover, or remove the screw with a screwdriver. Remove the cover. Remove the air filter to inspect the throttle choke arm.

Step 3

Measure the distance between control choke arm, which has the spring attached, and the control lever which the throttle cable pulls. The clearance should be 0 to 1 mm in length.

Step 4

Loosen the lock nut with a wrench and move the adjuster up or down to get the correct clearance.

Advertisement

Step 5

Loosen nuts holding the throttle cable at the handle if the cable is not taut and pull the cable with a pair of pliers until it is tight. Tighten the nuts again.
