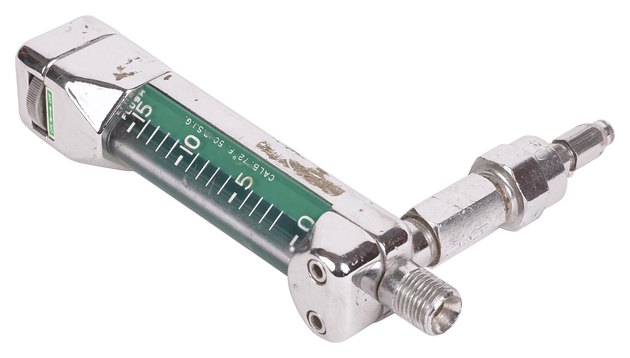

Rotameters are used to measure the flow rate of a gas through an orifice or series of tubing. There are many different types of rotameters available on the market today; most of them work based on gravity. The gas flow causes a small ball to rise in a graduated column, while gravity pushes down. This results in an accurate measure of flow rate, generally measured in liters per minute. Most rotameters are also equipped with a dial in order to set the flow at a desired rate. Reading a rotameter from the top is fairly simple.
Step 1
Set up the rotameter on a flat surface. It is important for the meter to be level. You may need to use clamps to attach the rotameter to something sturdy; some are too large to stand on their own.
Video of the Day
Step 2
Connect the gas source through tubing to the rotameter and turn on the gas. Some rotameters come with standard fittings for various size tubing. You may need to purchase tubing connections from a hardware store.
Step 3
Find the ball floating in the middle of the rotameter column. Look at the bottom of the ball, and see where it lines up with the scale on the side of the meter. This is the flow rate. Rotameters are marked from the top to bottom, increasing to decreasing flow, similar to a thermometer. The scale will vary based on the make of the rotameter.
Tip
If you want to set the flow rate to a certain level, use the knob or dial on the rotameter. Move it up or down until the bottom of the ball reads at the rate you desire.
Warning
Always work in a well-ventilated area if dealing with toxic gases.
