How to Attach a Pool Ladder to a Deck

eHow may earn compensation through affiliate links in this story. Learn more about our affiliate and product review process here.

Things You'll Need

  • Pool ladder mounting flanges

  • Pool ladder

  • Bubble level

  • Electric screw gun

  • Mason drill

  • Socket wrench

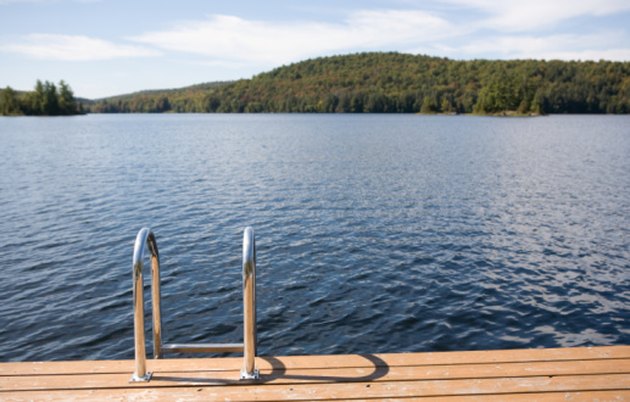

Pool ladders make exiting the water easier.

Use metal flanges to attach a pool ladder to the wood or concrete deck of your pool. The metal flanges allow pool owners to install a ladder wherever they desire. Screws hold the flanges to the deck and make installation and removal of the ladder easy. The legs of the ladder slide down into the flange and a bolt on the side of the flange allows for tightening. Back the bolt off and you can pull the ladder legs out.

Advertisement

Step 1

Place the flanges on the deck where you want them to go.

Video of the Day

Step 2

Slide the legs of the top end of the ladder into the flange cups.

Step 3

Hang the bottom end of the ladder down into the pool and allow the rubber stops to rest against the pool side.

Advertisement

Step 4

Place a bubble level on top of the first step of the ladder. Turn it perpendicular to the direction of the step. Move the ladder toward or away from the pool until the ladder steps are level. The bubble inside the level should be centered.

Step 5

Sink the flange bolts into the deck. Use an electric screw gun if the deck is made of wood. Drill holes with a mason drill and ratchet in bolts with a socket wrench if the deck is made of concrete.

Advertisement

Step 6

Tighten the fastening bolts on the sides of the flange cups to keep the ladder from moving around during use. Use a socket wrench to tighten these.

Tip

Put Liquid Nails in the concrete holes before screwing in the bolts. This adhesive will provide added strength.
