How to Make a Hole Puncher

A homemade hole punch is used to punch holes in paper, card stock, cardboard, foam, gasket sheeting and fabric. A sharp edge is required to make a clean sharp cut. A piece of black pipe works extremely well for a hole punch. Use an 1/8-inch, 1/4-inch, 1/2-inch or 3/4-inch piece of black pipe two inches long to make a hole punch. Larger diameters of black pipe are available for purchase if the diameter of the required hole is larger than 3/4-inches.

Things You'll Need

  • 1/2-inch black pipe 4-inches long

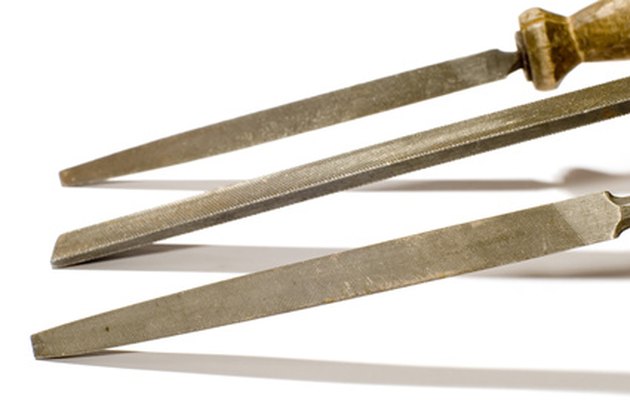

  • Flat file

  • Bench vise

  • Cloth

Step 1

Position a 4-inch piece of 1/2-inch diameter black pipe on the outside edge of the bench vise. Secure the black pipe so it is on a true horizontal.

Step 2

Use a flat file and bevel the edge of the pipe. Push the file away from the pipe at a 25-degree angle.

Step 3

Reposition the pipe as needed to create a 25-degree bevel around the circumference of the pipe. File until the round edge is razor sharp.

Step 4

Remove the pipe from the bench vise. Wipe the entire surface to remove any metal shavings.

Tip

Cut the black pipe to any length desired.
