Easy DIY Dowel Shoe Rack

Save

As our shoe collections grow, so does the amount of space we need to store them! If you’re not one of the lucky few who have a closet large enough for a Clueless style organization system, it can be a difficult task to find a place for every pair–especially without misplacing a few! So why don’t we get creative with our shoe storage systems? This way, rather than hiding them away, we can celebrate (and be able to find) them whenever we like.

This shoe rack can be made to fit any space you have in your home and will look great out on display, with all your favourite pairs lined up and ready to go!

(Image: Francesca Stone)

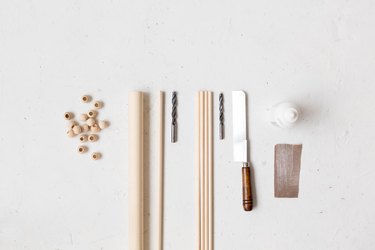

Things You'll Need

  • 25mm Dowel
  • 10mm Dowel
  • 8mm Dowel
  • 10mm Drill Bit
  • 8mm Drill Bit
  • Saw
  • Wooden Beads with 8mm Hole
  • Sand Paper
  • Wood Glue
(Image: Francesca Stone)

Step 1: Measure & Prepare the Large Dowel

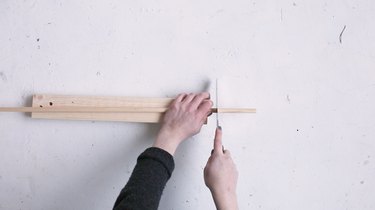

Measure the space for your shoe rack. Round this down to the nearest inch measurement and cut a piece of 1” x 1” circular dowel to size.

(Image: Francesca Stone)

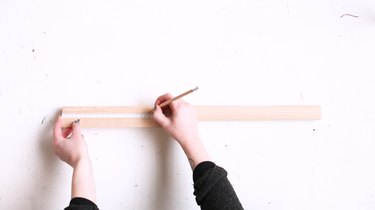

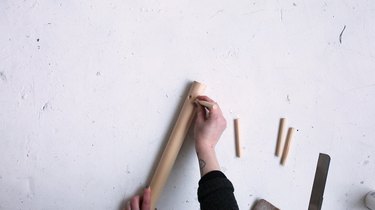

Draw a straight line along the length of the dowel. Make sure this is straight by looking straight down the length of the dowel, keeping the line in the center. It should start and end in the same place.

Starting 1” from the edge of the dowel, measure and mark every two inches down this line.

Draw a second line ¼” away from the first in either direction.

Starting from the same end of the dowel as you did last time, measure three inches in from the edge. Starting at this point, mark every two inches stopping one inch away from the other end. This should give you points marked in a zigzag pattern.

Step 2: Drill Holes

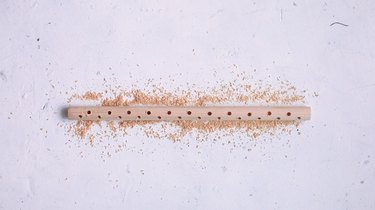

Drill a hole at each of these points. Measure ½” along your drill bit and mark with masking tape. Use this as a guide to know how far to drill each time. Make sure you are drilling straight down into the centre of the dowel at the same angle every time. You can use a drill angle guide and vice to get this perfect.

(Image: Francesca Stone)
(Image: Francesca Stone)

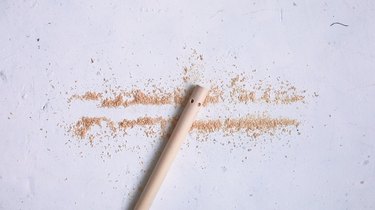

Make a mark in the center of these two lines on both ends of the dowel. Then draw a line along the diameter (do this by measuring the longest point) to the other side. Turn the dowel so your existing holes are facing down and measure and mark ½” away from the line and 2” down the length of the dowel. These will be your holes for the feet. Repeat at both ends.

Repeat step 6 at these four points.

Step 3: Create Legs

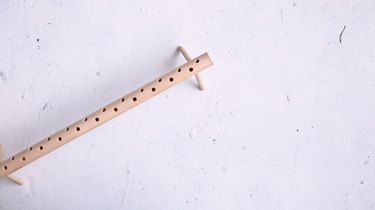

Cut four pieces of dowel, 3” long. Sand the ends and use a little wood adhesive to secure the pieces into each of the four holes along the bottom of the dowel. You might need to use a hammer to push them in place.

(Image: Francesca Stone)
(Image: Francesca Stone)
(Image: Francesca Stone)

Step 4: Create Shoe-Holding Dowels

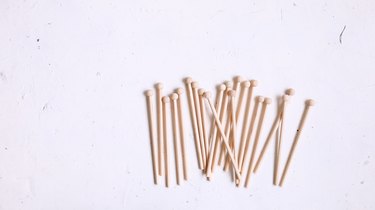

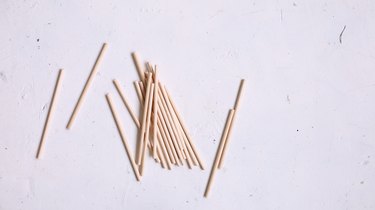

Cut your dowels to 10” long. You’ll need to calculate how much dowel you will need based on the amount of holes you have. Place a bead on top of each dowel using the wood glue to secure in position, if needed.

(Image: Francesca Stone)
(Image: Francesca Stone)

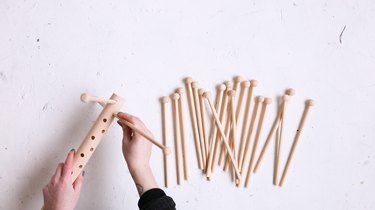

Squeeze a drop of wood glue into each hole on the top of the dowel (the side with more holes) and push the end of the small dowels into each one. You might need to sand them slightly or use a hammer to push them in securely.

(Image: Francesca Stone)
(Image: Francesca Stone)

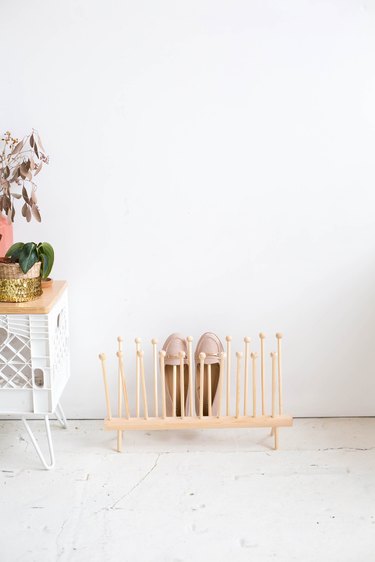

You now have a beautiful shoe rack to display and organize your favorite pairs!
