How to Repair a Circulating Pump

eHow may earn compensation through affiliate links in this story. Learn more about our affiliate and product review process here.

Things You'll Need

  • Adjustable wrenches (2 pair)

  • 6-in-1 screw and nut driver

  • Set of Allen keys (both metric and standard)

  • Wire nuts

  • Electrical tape

  • Garden hose

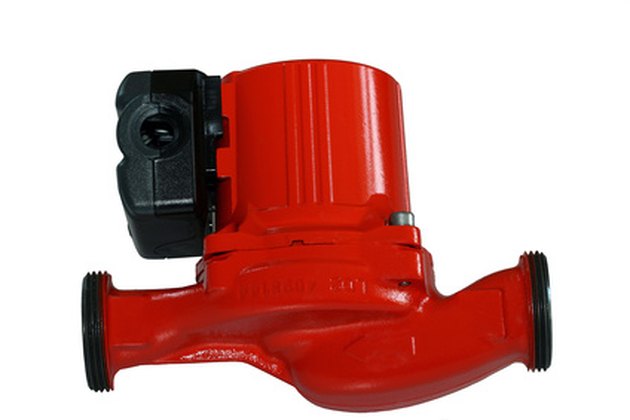

In most residential hydronic heating systems, water is circulated throughout the system using one or more circulator pumps. Being one of the key components in the system, it is fortunate that they have become very easy to repair and/or replace. Taco, a widely used manufacturer of circulator pumps, is a prime example of the simplicity of the repair process for most boiler and water heater circulation pumps. What follows is the repair process for one of the more common style Taco pumps in use, the "00" series wet rotor circulation pump.

Advertisement

Replacing the motor

Step 1

Before attempting the repair, order the entire repair parts kit from the manufacturer to limit the amount of time the heating appliance will be down.

Video of the Day

Step 2

Shut down the power, water, and fuel to the boiler or water heater appliance the pump services.

Step 3

Shut off power to the circulation pump.

Step 4

Open the electrical cover on the top of the cartridge of the pump using the 6-in-1 screwdriver.

Step 5

Disconnect the electrical wires from the pump.

Advertisement

Step 6

If possible, valve off the circulator pump. If valves were not provided in the original installation, drain down the boiler using the boiler drain at the bottom of the boiler and the garden hose.

Step 7

Loosen and remove the four bolts on the two flanges holding the circulation pump in place and remove the pump.

Advertisement

Step 8

Using the correct size Allen key, remove the motor assembly.

Step 9

Install the new motor assembly per the manufacturer's instructions with the supplied gaskets.

Step 10

Reverse Steps 1 thru 8 and follow the individual boiler or water heater manufacturers Operating Instructions to restart the system.

Advertisement

Step 11

Check for leaks.

Replacing the Cartridge Assembly

Step 1

Perform Steps 1 thru 8 of Section 1

Step 2

Remove the cartridge assembly from the existing motor assembly.

Advertisement

Step 3

Insert the new cartridge assembly into the existing motor assembly, making sure the cover plate is between the cartridge flange and the motor.

Step 4

Reverse Steps 1 through 8 and follow the individual boiler or water heater manufacturer's Operating Instructions to restart the system.

Step 5

Check for leaks.

Tip

Be sure to shut off the electric before disconnecting the circulation pump to avoid shock.

Warning

Do not attempt the repair without the complete repair kit and the specific boiler's Operator's Manual.
