How to Use a Chainsaw Depth Gauge

eHow may earn compensation through affiliate links in this story. Learn more about our affiliate and product review process here.

Things You'll Need

  • Small flat screwdriver

  • Round chainsaw file

  • 6-inch flat chainsaw file

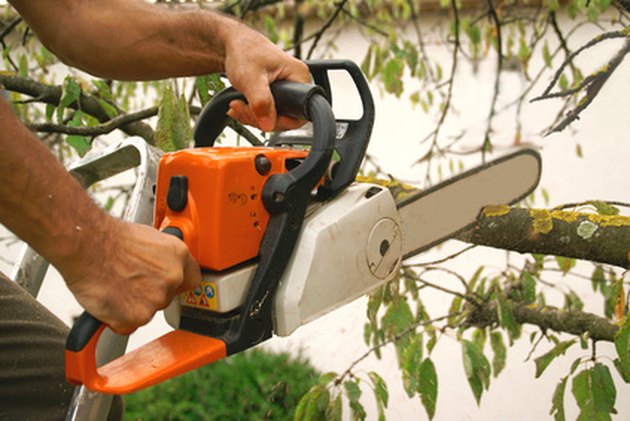

Chainsaw blades should be sharp to cut wood quickly and operate correctly.

Chainsaw blades need sharpening to keep them in good working order. A dull chainsaw blade will cut slowly, bind in wood and can cause dangerous kickbacks to the operator. Dull chains will pull off the bar while in use and can strike the operator causing severe injuries. A chainsaw depth gauge provides a flat surface across the top of the chainsaw teeth. After sharpening the teeth, the gauge is a guideline to file the guide teeth down so they are all the same height and operate smoothly.

Advertisement

Step 1

Place a small flat screwdriver in the tension adjusting screw near the base of the chainsaw bar. Turn the screw clockwise to tighten the tension on the chain.

Video of the Day

Step 2

Place a round chainsaw file on a tooth on the left side and pull the file in one direction across the tooth at a 45-degree angle. Pull the file across the tooth five times for general sharpening or up to ten times for very dull blades. Repeat for each tooth on the left side of the chain.

Advertisement

Step 3

Sharpen each tooth on the right side of the chain in the same manner.

Step 4

Place a chainsaw depth gauge over two teeth of the saw blade. Two teeth will protrude through the slot in the depth gauge. One tooth will be on each side of the chain.

Advertisement

Step 5

Place a 6-inch flat chainsaw file flat over the top of the teeth protruding from the gauge.

Step 6

Slide the flat file over the exposed teeth until the chain is level with the gauge. This is usually only two to three strokes.

Advertisement

Step 7

Remove the file gauge and place it on the next two teeth to file them.

Step 8

Pull the chain around the chain saw bar by hand to reposition the gauge and file the depth of each chain saw tooth.

Tip

Tightening a chain on a chain saw bar makes it easier to file and sharpen the teeth by making the chain have less play and movement.

A chain saw chain will pull around the bar by pinching between a thumb and forefinger to sharpen and file each tooth.

Warning

Observe a chain before sharpening. If they are any broken or loose links replace the chain rather than sharpen it for safety practices. A broken chain will detach from the bar and launch in an unpredictable direction to cause harm to whatever it strikes.
