How to Run Electrical Wiring to a Kitchen Island

eHow may earn compensation through affiliate links in this story. Learn more about our affiliate and product review process here.

Things You'll Need

  • Cordless drill

  • Set of drill bits

  • Masking tape

  • Masonry drill (if required)

  • Correct amperage 3-core wire

  • Insulated cable staples

  • Saber saw

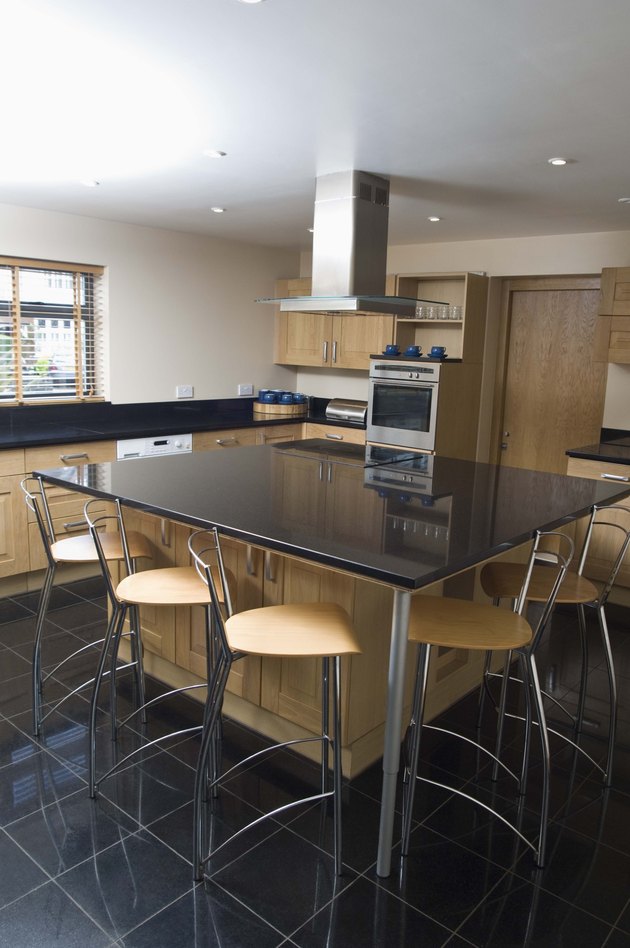

Run new wire to your kitchen island through the basement or crawl space.
Image Credit: Jupiterimages/Comstock/Getty Images

One of the trickiest parts of installing a kitchen island is running electrical wiring to the island, and there's only one way to do it. Drill a hole in the floor at the desired location, running the wiring to the household electrical panel through the basement or crawl space. Since building codes call for kitchen outlets to be connected to a ground fault circuit interrupter (GFCI), save money by running the wire yourself. Have a licensed electrician install a GFCI breaker switch on the household panel connected to a GFCI outlet on the island.

Advertisement

Step 1

Drill a hole through the kitchen floor at the desired location with a cordless drill and a 3/8-inch drill bit. If your floor is fitted with ceramic tiles, stick a strip of masking tape over the tile and use a masonry drill for this operation.

Video of the Day

Step 2

Go into the basement or crawl space and drill 3/8-inch holes through the floor joists between the hole in the floor and the nearest electrical junction box. Drill the holes as close to the kitchen floor as possible. This allows the electrician to trace the circuit from the junction box to the electrical panel, and then replace the existing circuit breaker switch with the required GFCI circuit breaker.

Advertisement

Step 3

Run a length of the correct amperage 3-core wire from the junction box through the holes in the floor joists, and up through the hole in the floor. Secure the wire to the kitchen floor with insulated cable staples hammered in at 2-foot intervals.

Step 4

Drill any holes necessary in the island for the electrical wire before installing the island. Measure and mark the hole for the GFCI outlet on your island. Drill 1/4-inch holes in the corners and cut out the opening with a saber saw.

Advertisement

Step 5

Thread the wire up through the island to the cutout. Position the island correctly. Secure the end of the wire to the outside of the outlet opening with a piece of masking tape. Attach the island to the floor as recommended by the manufacturer.

Step 6

Call a licensed electrician to install the GFCI circuit breaker on the electrical panel, and to complete the junction box and island GFCI outlet connections.
