How to Easily Install a Deadbolt Lock onto a Door

Save

Increase your home security by installing a deadbolt lock on all exterior doors, including the door between the garage or basement and the house. This is a relatively inexpensive project that you can do yourself. You will not only improve the safety of your home for yourself and your family, but save money at the same time.

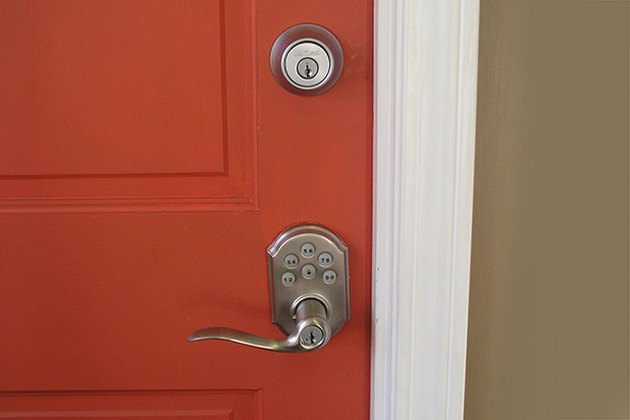

Consider the appearance of both sides of the door.
(Debbie Williams)

Things You'll Need

  • Deadbolt lock
  • 2 1/8" hole saw
  • Power drill
  • 1" drill bit
  • 1/8" drill bit
  • Wood chisel
  • Hammer
  • Utility knife
  • Pencil
Step 1

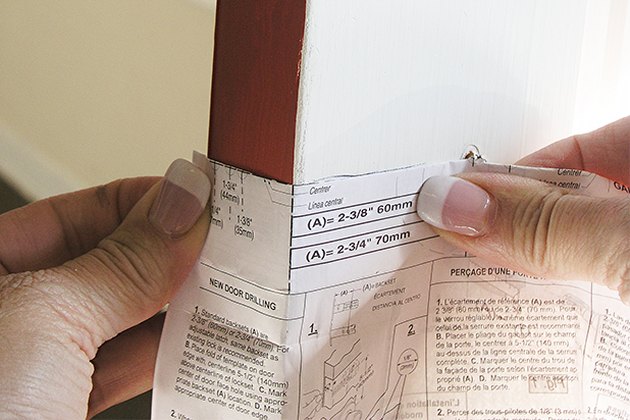

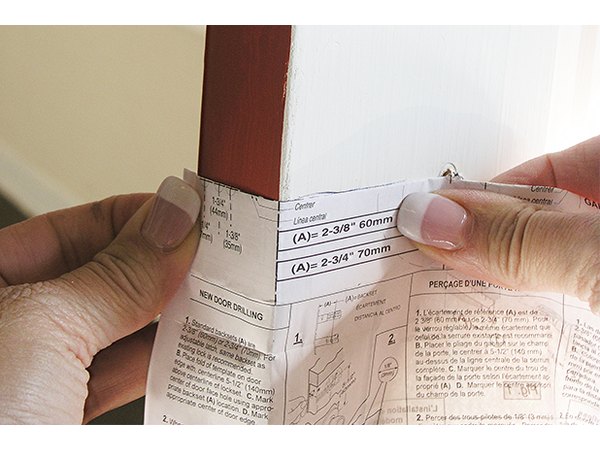

A template for alignment should be included with a deadbolt lock. Use this template to place marks in the correct location for installation. A deadbolt should be centered on the doorknob, about 6" above its location and usually between 2 3/8" and 2 3/4" toward the center.

Mark the centers according to the provided template.
Debbie Williams
Step 2

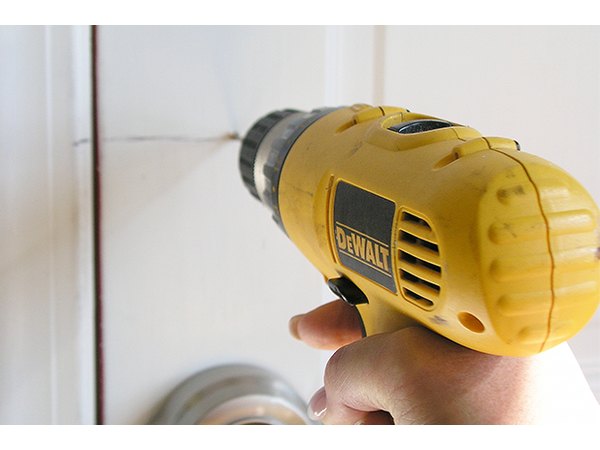

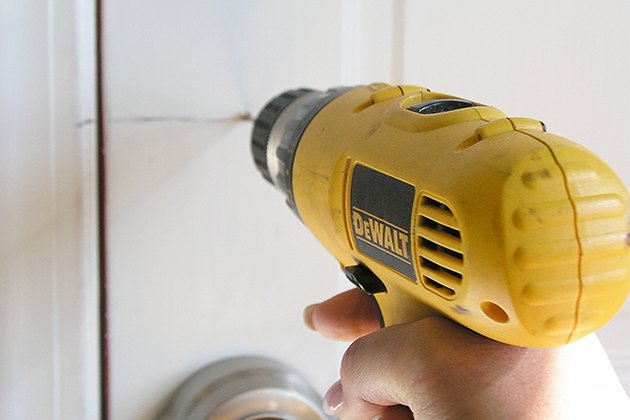

Drill a 1/8" pilot hole through the center of the lock placement mark and another one through the center of the door edge placement mark. This will give the center bit of the hole saw a place to start and keep the alignment straight.

Hold the drill in straight alignment.
Debbie Williams
Step 3

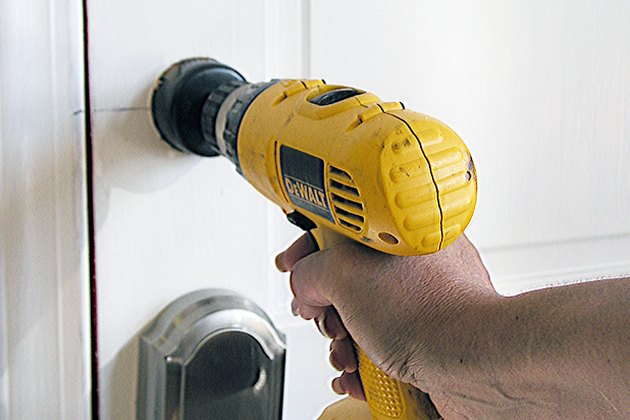

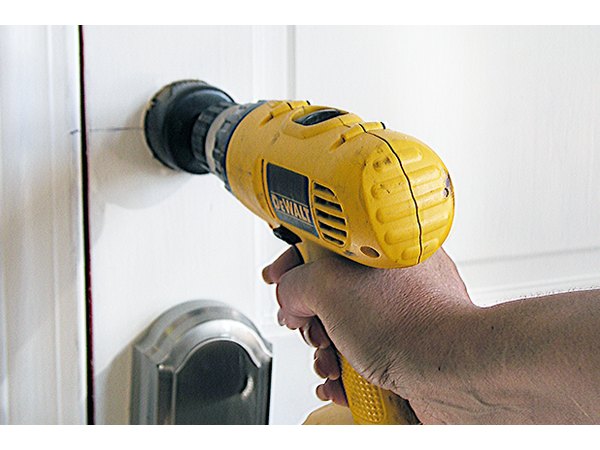

Drill about 1" through the door with the hole saw from the inside, change to the outside and complete the hole. This will prevent tear out on the back side of the door. (There is a small drill bit in the center of the hole saw that will keep the hole aligned through the pilot hole.)

Keep a firm grip on the drill as it is cutting a lot of material.
Debbie Williams
Step 4

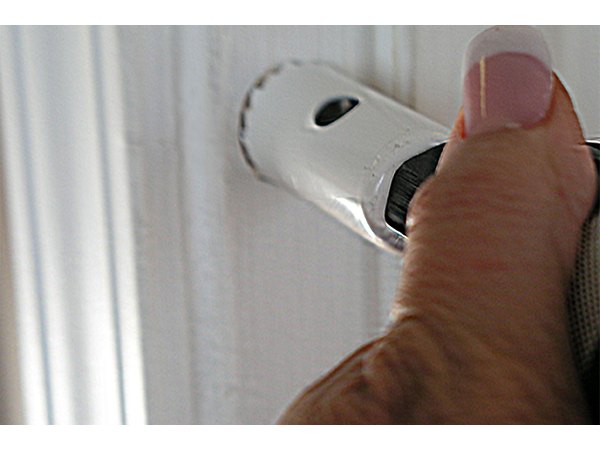

Use a common nail placed through the pre-drilled pilot hole in the edge of the door to mark the location in the door frame for the striker plate hole. Using a 1" spade bit or a 1" hole saw, drill a hole through the edge of the door into the space cut for the deadbolt lock. Cut a 1" hole in the door frame centered on the location mark made with the nail.

Use a chisel to knock out the wood plug if using a hole saw.
Debbie Williams
Step 5

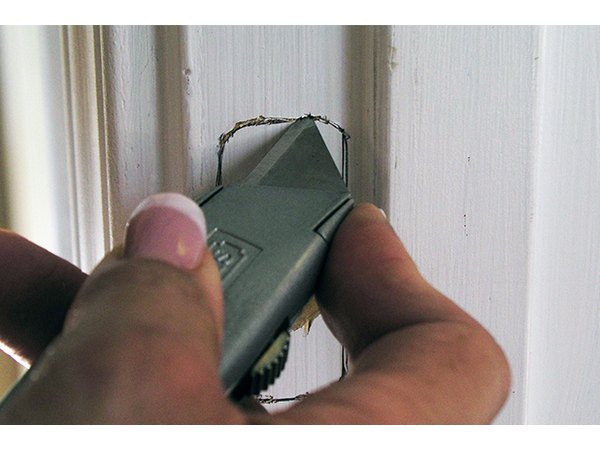

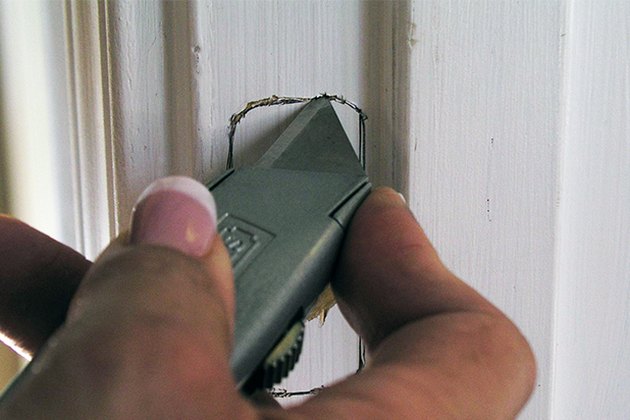

Center the strike plate over the cut hole in the door frame and draw around the edge with a pencil. Score this line with a utility knife.

Score slowly to stay on the lines.
Debbie Williams
Step 6

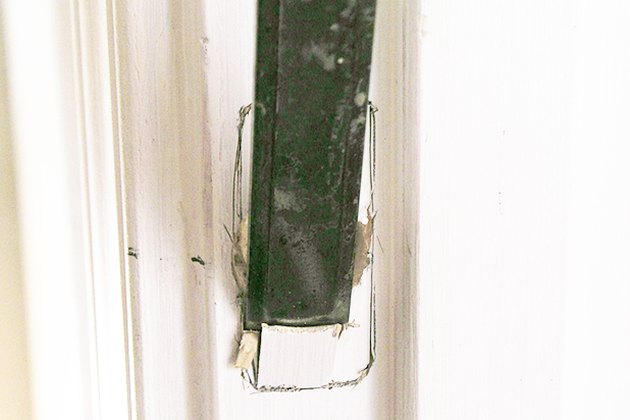

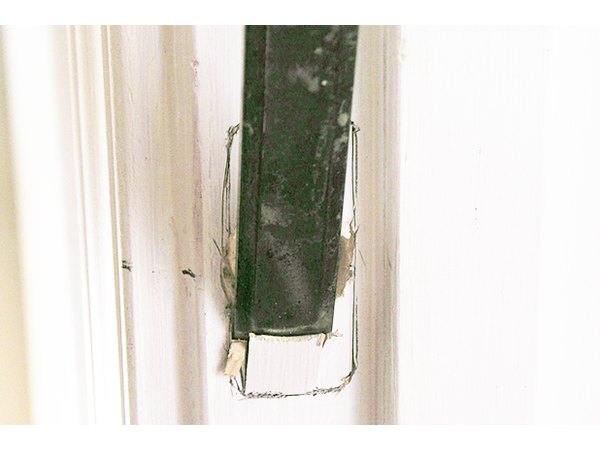

Chisel out the wood in the area for the strike plate by keeping the beveled side of the chisel against the mortised area and tap the end with a hammer. Remove enough material so that the strike plate sits even with the door frame. Repeat this method for the faceplate on the edge of the door.

Remove enough wood so that the plate sits level with the doorframe.
Debbie Williams
Step 7

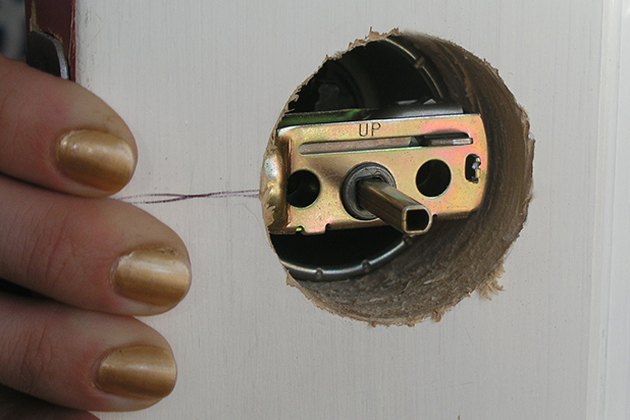

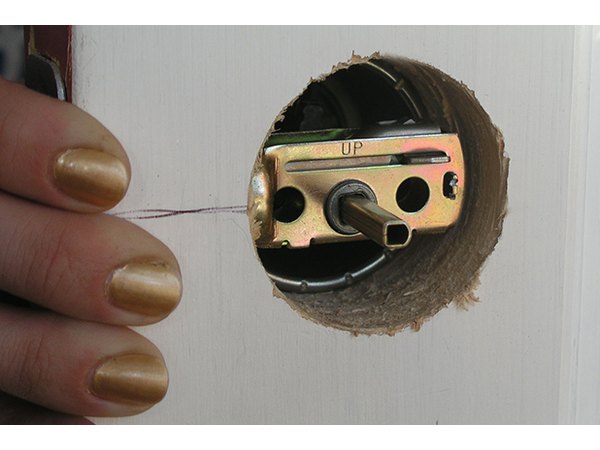

Place the cylinder assembly through the door edge hole. Check the exterior side and make sure any writing is upright. Set the interior thumb-turn plate in place and align the screw holes with the mounting holes inside the lock. Secure the assembly in place with the long screws.

Check that all writing is upright.
Debbie Williams
Step 8

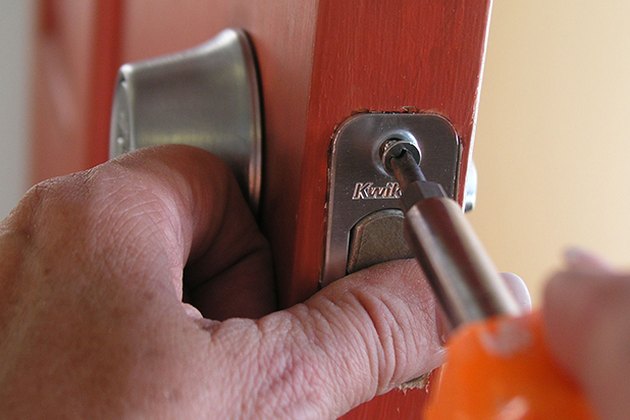

Screw the faceplate on the door edge and the strike plate on the door frame into place. Test the lock to assure that it operates smoothly and make any adjustments necessary.

The screws should be flush with the plates.
Debbie Williams
