Specifications for a Woods Finish Mower RM-550

eHow may earn compensation through affiliate links in this story. Learn more about our affiliate and product review process here.

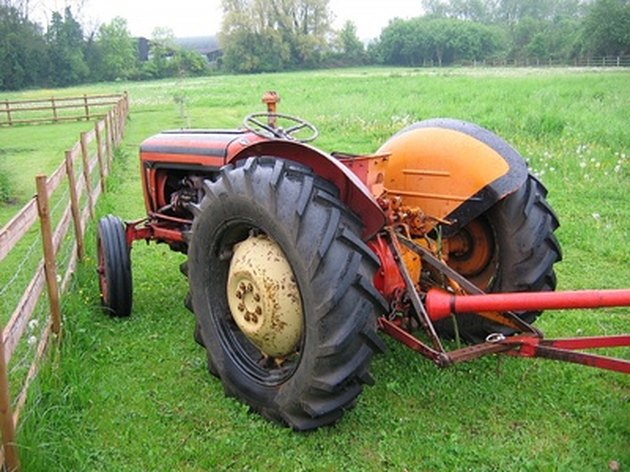

The RM550 attaches to the rear of the tractor.

The Woods RM550 is a rear-mount finish mower suitable for lawn and grass mowing but not heavy weeds or rough conditions, according to the operator's manual. The mower is connected to a tractor with a standard 1 and 3/8 inches 6 bolt spline driveline having a QD (quick disconnect) yoke. There is also a Woods model RM550-2 available with faster blade speed.

Advertisement

Cutting Width and Height Range

The cutting width is 60 inches. The cutting height range is 1.5 to 6 inches.

Video of the Day

Shipping Weight

The approximate shipping weight is 500 pounds.

Advertisement

Blades

There are three blades and three blade spindles. The blades spin at 2,776 revolutions per minute (RPM). The speed of the blades is 15,080 feet per minute (FPM). The rotation of the blades is clockwise, viewed from the top of the attachment.

Advertisement

Other Specifications

The caster wheels are 3.5 inches wide x 10.25 inches in diameter. The mower frame thickness is 8 GA (gauge, or gage).

Operation

The tractor power take-off (PTO) speed is 540 revolutions per minute (RPM). The recommended maximum tractor horsepower is 35. For most conditions, the recommended mowing speed is from two to five miles per hour.

Advertisement
