How to Build a Powder Coating Oven

Save

A powder coating oven has a variety of advantages and its construction is therefore essential. To begin with, the product has the ability to return exhaust air from the coating booth to the coating room, which prevents oven air from being exhausted to the outside. Also, the oven can easily adapt to continuous, automatic processes. It has high throughput output options, is dependable, and easy to operate. Furthermore, the product has low operating and maintenance costs. Finally, the oven requires a minimum of maintenance and supervision and is hence definitely a truly useful product.

Powder Coating Oven
(http://www.caswellplating.com/powder/images/oven1.jpg)

Things You'll Need

  • Welder
  • Wooden handle
  • Thermometer
  • 2 Propane burners
  • Metal pipe for oven's legs
  • Propane tank
  • Propane regulator
  • 55 gallon Drum
  • 1" angle Metal for reinforcement
  • Chain for oven's lid
Step 1

The first step in the process is the construction of a base. The base is built from 3-5/8" metal drywall studs. These studs are then attached with pop rivets into a frame with two bays. In a later step, burner pans will be set up in the bays to encircle the oven's bottom.

Base
Step 2

The next step is to build the panels that form the shell of the oven. These panels are made up of 28 gauge galvanized sheet metal enclosed by a core of 2" rigid fiberglass insulation. This is typically done by bending one piece of metal 4 times in order to shape it into a rectangular box. The two open ends that are left are then filled with separate fillers. All the seams are attached with pop rivets.

Panels
Step 3

The following step is the placement of the burner pan for installation. The pan props up the heating elements and ensures that heat is conserved and does not escape from the oven's bottom. The two outer flanges are situated on the base rails and attached with pop rivets.

Burner Pan
Step 4

The next task is to adjust the power of the oven. It is directed through the On/Off switch and is regulated by the thermostat. The contactor is the center of the system. This circuit triggers the contactor's coil, which closes the circuit feeding the oven's heating components.

ON/OFF switch
Step 5

The last step is to regulate the temperature of the oven. The thermostat controls the temperature by causing the contractor cycle to open and close. Finally, the oven has an interior light and switch inserted in it.

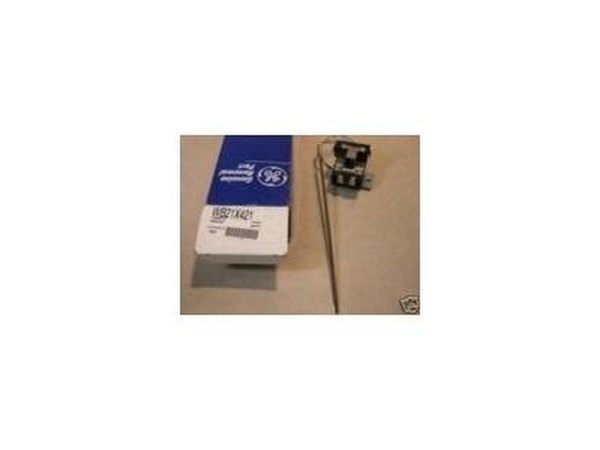

Thermostat

Related Searches

Tips & Warnings

  • If anything is at all unclear about these instructions, you can refer to manuals and other resources for more specific directions. There are two links in the Resources section to help you.
  • Always work in safety and use protective equipment when necessary.
