How to Make Geometric Planter Boxes for Your Patio

Save

Adding planters to a plain patio or deck adds interest and life and makes your outdoor space an extension of your home. Cedar fence pickets from the home improvement store can be transformed into a 15-inch-square geometric planter, perfect next to a seating area and layering with other planters. You will need a good understanding of woodworking, but if you're comfortable using a miter saw, this project can easily be done in a weekend.

Build a geometric planter from cedar fence pickets.
Build a geometric planter from cedar fence pickets. (Image: Sarah Dorsey)

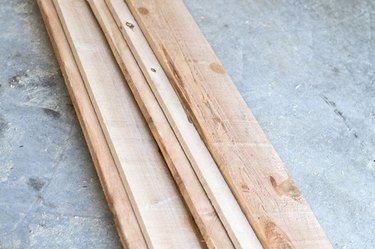

Cedar fence pickets from the home improvement store
Cedar fence pickets from the home improvement store (Image: Sarah Dorsey)

Things You'll Need

  • 6-foot cedar fence picket (three and a half per planter)
  • Miter saw
  • Pocket hole tool
  •  1-inch screws
  • Clamp
  • Drill
  • Air stapler
  • Tape measure
  • Orbital sander
  • Waterproofing sealant
  • Safety goggles
  • Hearing protection
  • Dust mask

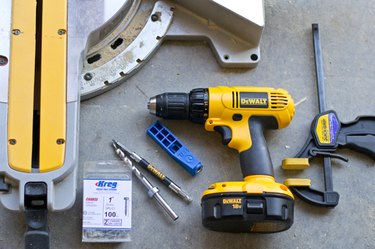

A few of the tools needed to make the geometric planter.
A few of the tools needed to make the geometric planter. (Image: Sarah Dorsey )

Step 1: Cut the Cedar Pickets

Using a chop saw, cut 11 inch sections (qty 18 per planter) and 5 inch section (qty eight per planter).

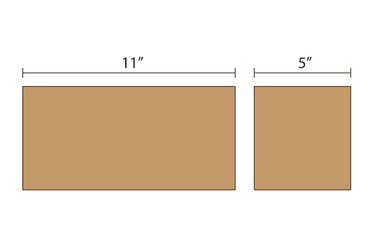

Lengths needed for the cedar fence pickets
Lengths needed for the cedar fence pickets (Image: Sarah Dorsey)

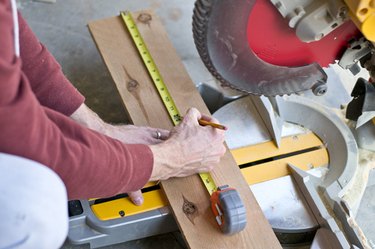

Measure and cut fence post pickets.
Measure and cut fence post pickets. (Image: Sarah Dorsey)

Step 2: Drill Pocket Holes

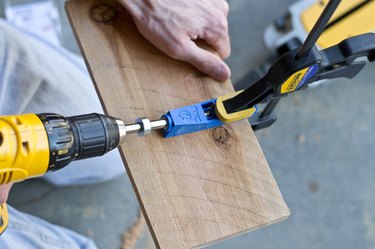

Create pocket holes to join the wood together.
Create pocket holes to join the wood together. (Image: Sarah Dorsey)

Pocket holes are drilled at an angle and allow you to join the wood from the interior so that the screw is hidden.

Below are the measurements for the pocket hole placement for the square and the "T" shape, which will become the triangle.

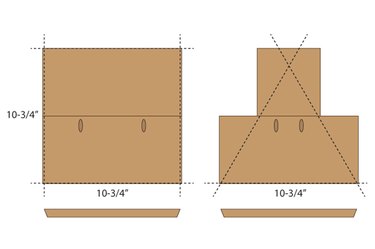

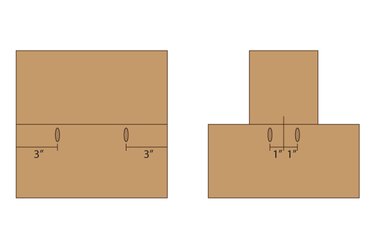

Where to drill the pocket holes
Where to drill the pocket holes (Image: Sarah Dorsey)

Drill the pocket holes for the square 3 inches from the sides on five of the 11-inch sections.

Drill the pocket holes for the "T" shape. Mark the center of eight of the 11-inch sections and all of the 5-inch sections and 1 inch from the center of the 11-inch sections. Center the 5-inch section on the 11-inch section.

Step 3: Join the Cedar Pickets

Insert screws to connect the cedar fence pickets.

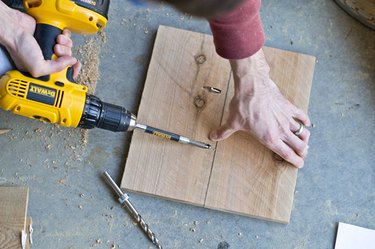

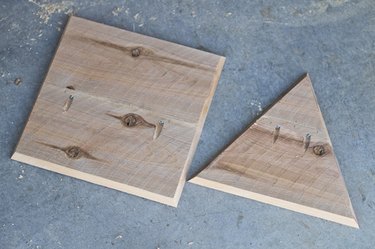

Join cedar 11-inch cedar pickets to form a square.
Join cedar 11-inch cedar pickets to form a square. (Image: Sarah Dorsey )

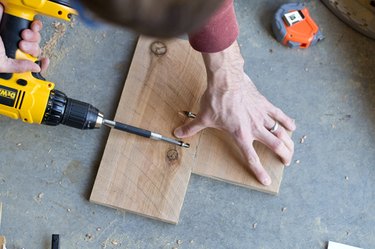

Join the 5-inch and 11-inch cedar picket to for a "T."
Join the 5-inch and 11-inch cedar picket to for a "T." (Image: Sarah Dorsey)

Step 4: Cut the Angles

For the square, set the bevel of the chop saw to 27.5 degrees and the miter angle to 0 degrees. Cut all four edges to create 10 3/4-inch squares.

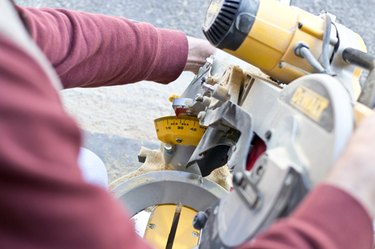

Adjust the bevel angle of the chop saw.
Adjust the bevel angle of the chop saw. (Image: Sarah Dorsey)

Step 5: Cut the Angles on the "T" Pieces

For the triangle, leave the bevel of the chop saw at 27.5 degrees and the miter angle at 0 degrees. Cut the 11-inch edge (the top of the “T” shape). Next, set the miter angle on the saw to 30 degrees. With the top of the “T” shape against the saw fence, make the first cut from the corner toward the bottom of the “T” shape. Rotate the triangle so the last cut edge is now against the fence, and cut the third side at 10 3/4 inches. This will leave you with an equilateral triangle with three 10 3/4-inch sides.

Cut the angles on the edge of the cedar plank.
Cut the angles on the edge of the cedar plank. (Image: Sarah Dorsey)

After the cuts are made, the pieces will look like this. You will need five squares and eight triangles per planter.

five squares and eight triangles per planter are needed per planter.
five squares and eight triangles per planter are needed per planter. (Image: Sarah Dorsey)

Step 6: Sand the Corners

Prepare the pieces to be assembled. Sand the four corners on the squares at approximately a 45-degree angle. Because the square panels meet at the corners to create a 90-degree angle, the angle on the cut edge needs to be sanded to at least a 45 degree angle (this doesn't need to be exact but at least a 45). The corners on the triangle do not need to sanded.

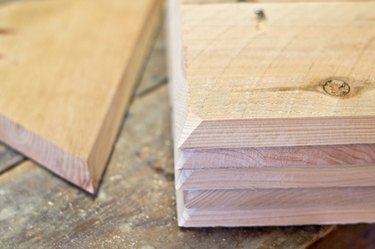

Sand the corners on the squares so the pieces sit flush.
Sand the corners on the squares so the pieces sit flush. (Image: Sarah Dorsey)

Step 7: Assemble the Planter

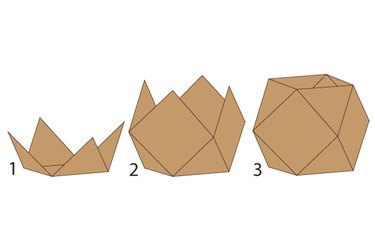

Assemble the planter with an air stapler using the following sequence. First, staple four triangle sections to the edges of a square to form the base. Second, staple four squares to the triangle sections from the base. Third, staple the top four triangles to complete the planter.

Assemble the planter.
Assemble the planter. (Image: Sarah Dorsey)

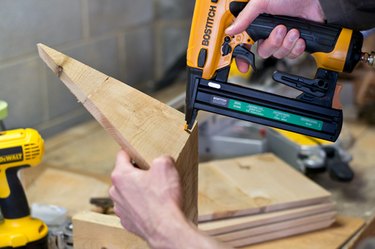

Use an air stapler to assemble planter.
Use an air stapler to assemble planter. (Image: Sarah Dorsey)

Step 8: Raise the Planter

If desired, flip the planter, and staple 2-inch squares (inset about 2 inches from edge) from the remaining cedar picket to serve as feet for the planter.

Add feet to the planter.
Add feet to the planter. (Image: Sarah Dorsey)

Step 9: Drill Drainage Holes

Drill four 1/2-inch holes (this size doesn't need to be exact) to allow water to drain from the planter.

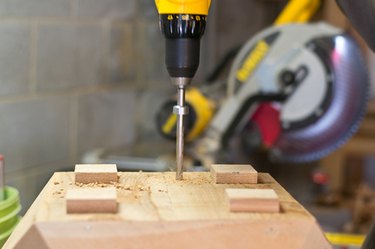

Drill holes for water drainage.
Drill holes for water drainage. (Image: Sarah Dorsey)

Step 10: Protect the cedar.

Cedar naturally weathers well, but for added protection, apply waterproofing sealer to protect the cedar.

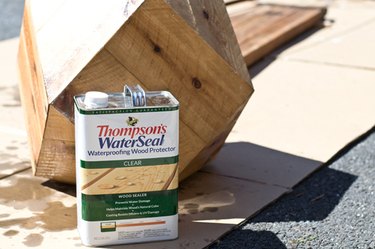

Add waterproofing sealer to protect the cedar.
Add waterproofing sealer to protect the cedar. (Image: Sarah Dorsey)

Step 11: Fill It

Let the sealer dry per the product's directions, and then fill it with your favorite flowers. Each planter will take about 1/2 yard of potting soil.

Once the sealer is dry, fill with soil and flowers.
Once the sealer is dry, fill with soil and flowers. (Image: Sarah Dorsey)

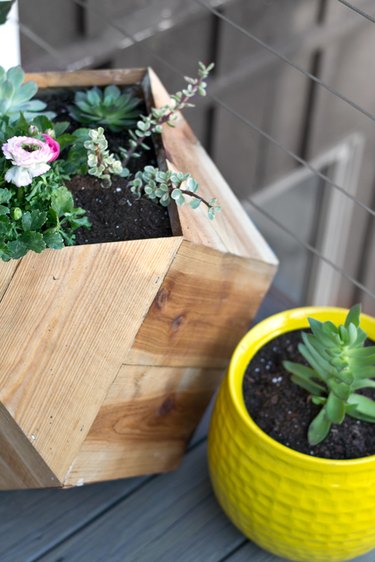

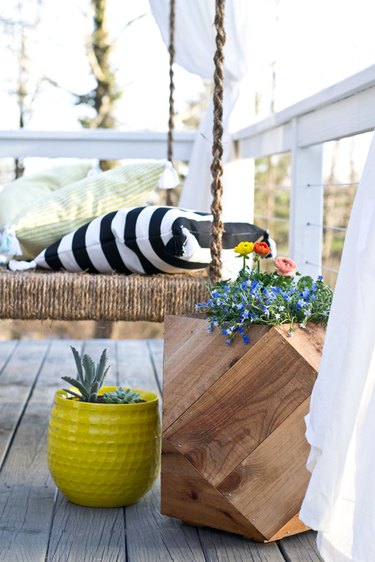

Add color and texture to your deck.
Add color and texture to your deck. (Image: Sarah Dorsey)
