How to Install the Casters on a Craftsman Tool Box

Save

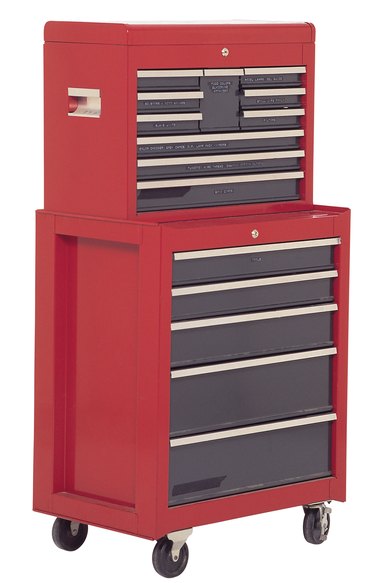

Rolling tool boxes aid efficiency for mechanics on the go.
Rolling tool boxes aid efficiency for mechanics on the go. (Image: Comstock/Comstock/Getty Images)

Whether you're remodeling a kitchen or maintaining your garden tractor, your work is made far easier when the tools you need can easily be kept close to where you're working. Large tool boxes are equipped with casters to make moving them easy. Mobile tool cabinets not only enhance work efficiency, but they help minimize tool misplacement. Proper installation of the casters on your professional series Craftsman roll-away will allow nearly effortless movement of your tools.

Lock the empty drawers of the tool box, and secure the drop-panels in the closed position. Protect the finish from scratches by placing carpet or packing from the carton the box came in on the ground for the box to rest on when it's inverted. Stand the box on its top.

Lay the caster angle plates in place across the bottom of the cabinet. Position the angle flanges face-up with the angles inboard, facing one another. Check the hole alignment through the angle plates to ensure proper placement.

Place the casters in position on the angle plates, with both swiveling casters on the same end of the cabinet, above the handle. Push the provided screws through the caster base and angle plates and tighten them. Return the box to the upright position.

Tips & Warnings

  • Use a short wrench or small quarter-inch drive ratchet when tightening the attaching screws to avoid stripping the screws or holes.

Related Searches

References

  • Tool Storage Roll-Away F1374A3; Sears, Roebuck & Co.
