How to Make Wood Octagon Frames

You can easily make an octagon frame from wood if you have a miter saw. You can build an octagon almost as easily as a square frame; the construction is the same, allowing that you have eight sides instead of four. For an alternative to the everyday picture frame, just get your miter and start cutting. It's best if you start with a flat style of molding or trim; then once you get the feel and the angle correct, move on to profiled moldings.

Things You'll Need

  • 1 piece of pine lumber, 1 1/2 x 49 x 3/4 inch
  • 1 miter saw
  • 100-grit sandpaper
  • 1 strap clamp
  • Wood glue
  • Hammer
  • 8 corrugated nails, 3/4 x 5/8 inch

Instructions

    • 1

      Set your miter saw at 22.5 degrees. Cut 8 pieces of the pine lumber at 6 inches measured from the longest point to the longest point of the miter. This measurement should give you an approximately 12-inch inside frame opening when finished.

    • 2

      Scrape off all the remaining splinters so that the edge of the miter is clean. Lay out all the miters on a flat surface in the shape of the octagon. Bring all the miters together. Place the strap clamp around the octagon frame and tighten slightly. A strap clamp is a long piece of nylon strap with a handle that tightens the strap. You can find these at any home improvement store.

    • 3

      Check all the joints. The strap clamp should even out and close all the joints. If the joints do not all close, adjust the miter saw to sharpen or lessen the angle. Barely trim one piece, then put the frame back together and tighten again. If the frame still won't close all the joints tight, trim another piece, fit again and then check the frame again until the octagon is tight all the way around. Keep the order of the pieces.

    • 4

      Place glue on each mitered end. Quickly assemble the octagon, wrap and tighten with the strap clamp. Tap on each corner to make sure the octagon is lying flat and that all corners are aligned. Let dry overnight.

    • 5

      Take off the strap clamp. Turn the frame over and hammer one corrugated nail into each mitered joint. Corrugated nails are short, flat pieces of metal that are sharp on one end. You can find them at any home department store. They are also called "spline nails."

Related Searches

References

Resources

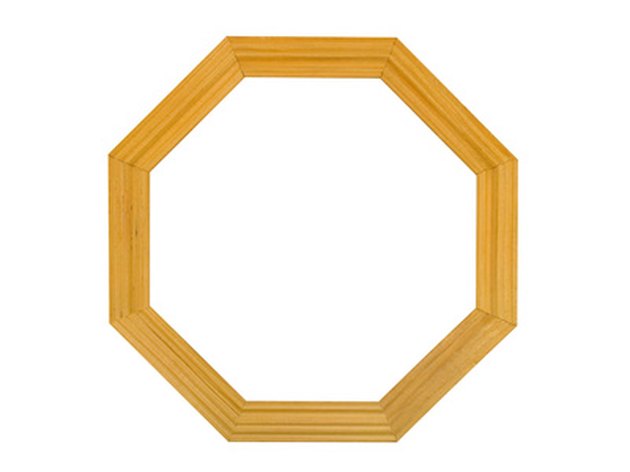

  • Photo Credit Eight-square wooden frame, isolated on white background image by Nikolai Sorokin from Fotolia.com
