How to Make Japanese Fans

Save

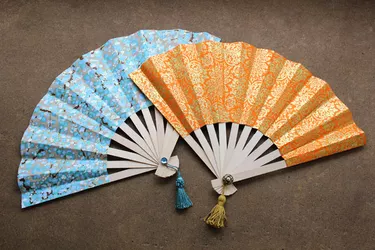

Japanese fans are both beautiful and functional.
Japanese fans are both beautiful and functional. (Image: Jonathan Fong)

Japanese folding fans, also known as sensu, are as beautiful as they are functional. Fashioned out of decorative paper and wood, you can make your own in just a few simple steps.

How to Make Japanese Fans

Japanese folding fans are as beautiful as they are functional. 🌸 Full tutorial: http://to.ehow.com/japanese_fans

Posted by eHow on Tuesday, January 3, 2017

What You'll Need

Gather your materials before beginning.
Gather your materials before beginning. (Image: Jonathan Fong)
  • Decorative wrapping paper
  • Plain white paper
  • Wood sticks, 11-inches long by 1/2-inch wide
  • 2-inch head pin
  • Push pin
  • Compass drawing tool
  • Scissors
  • Needle-nose pliers
  • Paint brush
  • Pencil
  • Glue
  • Tassel
  • Button

The Wood Sticks

The wood sticks are called "fan bones."
The wood sticks are called "fan bones." (Image: Jonathan Fong)

Japanese fans are typically made with bamboo, but flat bamboo sticks are difficult to find. As a substitute, basswood strips work just as well. Basswood is similar to balsa wood, except it's more durable. You can find basswood sticks in craft stores and hobby shops. The fan in this project uses 11-inch long sticks that were 1/2-inch wide and 1/16-inch thick. If your local store only sells basswood sheets that are larger than you need, they can easily be cut to size with a hobby knife. You will need 10 wood sticks to make the fan.

Step 1: : Pierce a Hole in Each Wood Stick

Puncture a hole 1 inch from the end.
Puncture a hole 1 inch from the end. (Image: Jonathan Fong)

Measure 1 inch from the end of each wood stick and puncture a hole at the midpoint with a push pin. Place a cutting mat underneath the wood so the pin can go all the way through.

Step 2: : Insert a Head Pin Through the Sticks

Connect the wood sticks with a head pin
Connect the wood sticks with a head pin (Image: Jonathan Fong)

After piercing a hole in all 10 wood sticks, stack them up and thread a 2-inch head pin through the holes.

Step 3: : Close the Other End of the Head Pin

Bend the head pin to secure the wood sticks.
Bend the head pin to secure the wood sticks. (Image: Jonathan Fong)

Using needle-nose pliers, twist the other end of the head pin to keep the pin from sliding out. The pin should keep the wood sticks tight, but still allow for pivoting. Don't worry if the twisted head pin is not that attractive—you will cover it with a button later.

Step 4: : Draw an Arc on White Paper

You can also trace a round plate if you don't have a compass.
You can also trace a round plate if you don't have a compass. (Image: Jonathan Fong)

This fan features two types of paper—decorative paper in front and plain white paper in the back that serves as a lining. The white paper gives more heft to the fan and helps to cover the wood sticks. Thin rice paper was used in this project but you can use any plain paper. Cut the paper to about 15 inches by 18 inches. Use a compass set at a 4-inch radius to draw an arc at the edge of the paper and cut out the half circle.

Step 5: : Position the Wood Sticks

The total span of the sticks should be between 90 and 180 degrees.
The total span of the sticks should be between 90 and 180 degrees. (Image: Jonathan Fong)

Position the wood sticks on the white paper with the pivot point at the bottom center where the half circle was removed. This way, about 4 inches of the wood will be exposed, with the rest covered by the white paper. Arrange the sticks so they are evenly spaced.

Step 6: : Trace an Outline of the Sticks

You won't see the pencil marks when you're done.
You won't see the pencil marks when you're done. (Image: Jonathan Fong)

Once the sticks are positioned exactly where you want them, trace around them with a pencil. You will remove the sticks in the next step, so tracing them will help you keep track of their correct position.

Step 7: : Glue the Backs of the Sticks

Only apply glue to the top portion of the sticks.
Only apply glue to the top portion of the sticks. (Image: Jonathan Fong)

Apply glue to the back of the sticks with a paint brush. Using a brush will give you a more even coat of glue on the wood.

Step 8: : Return the Fan Sticks to the Paper

The wood sticks are now set in position.
The wood sticks are now set in position. (Image: Jonathan Fong)

Place the wood sticks on the paper glue side down, using the pencil marks you traced earlier to return the sticks in the correct position. Press on the sticks with your fingers to make sure the glue makes contact with the paper.

Step 9: : Trim Roughly Around the Fan Sticks

Remove some of the excess white paper.
Remove some of the excess white paper. (Image: Jonathan Fong)

So the fan is easier to work with, use a pair of scissors to trim about 1 inch all around the wood fan sticks. You can approximate at this point, as this is not the final shape of the fan.

Step 10: : Cut a Half Circle in the Decorative Paper

The paper should be about 15 inches by 18 inches.
The paper should be about 15 inches by 18 inches. (Image: Jonathan Fong)

Choose a decorative paper that folds easily, like wrapping paper or origami paper. Just as you used the compass to measure an arc in the white paper, do so with the decorative paper and cut out the half circle. You want this arc to be slightly smaller than the one on the white paper, so set the compass to about 3 3/4 inches.

Step 11: : Apply Glue to the Front of the Fan

The glue will adhere the two layers of paper.
The glue will adhere the two layers of paper. (Image: Jonathan Fong)

Use a brush and apply glue to the front of the wood sticks, only where they make contact with the paper. It's also a good idea to dab a little glue on the paper in between the sticks so that the decorative paper will adhere to the white lining.

Step 12: : Position the Back of the Fan Onto the Front

Place the fan on the "wrong" side of the paper.
Place the fan on the "wrong" side of the paper. (Image: Jonathan Fong)

Turn the fan over, glue side down, and adhere it to the "wrong" side of the decorative paper. Make sure the two half circles at the bottom line up, with the decorative paper extending past the white lining by about 1/4 inch. Run your fingers across the paper to smooth it out.

Step 13: : Trim to Your Finished Size

Cut right up to the tip of the sticks.
Cut right up to the tip of the sticks. (Image: Jonathan Fong)

Use the tops of the fan sticks as a guide and cut all around the top of the fan. Leave about a 1/2 inch of paper on the left and right edges of the fan.

Step 14: : Cover the Ends With Decorative Paper

Give the edges a finished look.
Give the edges a finished look. (Image: Jonathan Fong)

On the wood sticks at the very left and right edge, apply some glue and fold the decorative paper onto it. This way, you will have finished edges when the fan is folded.

Step 15: : Fold the Fan

Folding up the fan will create pleats.
Folding up the fan will create pleats. (Image: Jonathan Fong)

Fold the fan, lining up the wood sticks. The paper will fold up along with the sticks. Give the paper a strong crease so that the pleats will show when the fan is unfolded.

Step 16: : Add a Tassel

Choose a tassel that will coordinate with the fan.
Choose a tassel that will coordinate with the fan. (Image: Jonathan Fong)

Hook a tassel onto the twisted knot of the head pin. Give it a tug to make sure it won't slip off.

Step 17: : Cover the Head Pin With a Button

The button is flush with the wood.
The button is flush with the wood. (Image: Jonathan Fong)

Glue a decorative button on top of the twisted part of the head pin. The button hides the twisted metal and locks the tassel into place. It helps if the button is concave in the back, so the head pin can sit in the cavity.
